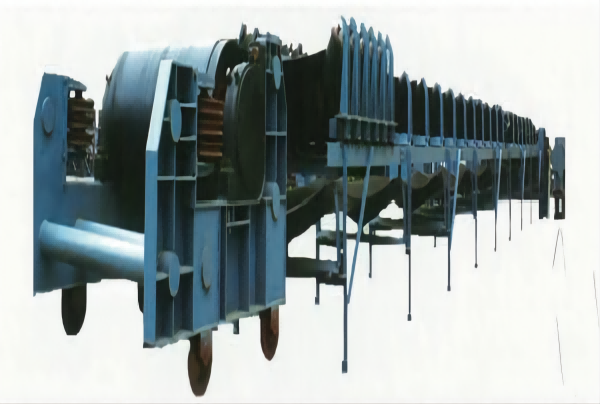

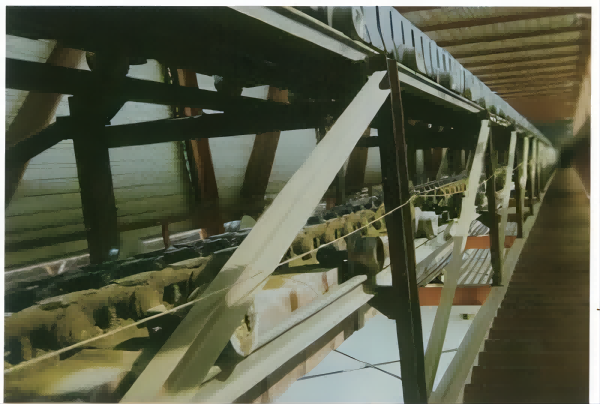

(1) DX type steel rope core belt conveyor is a universal series design and belongs to high strength belt conveyor.

The conveyor is suitable for large-volume and long-distance transportation of bulk materials.

(2) This series has seven types of bandwidth, five types of belt speeds and ten types of belt strengths. The composition of the conveyor

See table below.

(3) Can transport materials with loose density β=0.8-2.5t/m3

(4) The working environment temperature is generally 20-40℃. In cold areas, the driving part should

There is heating.

(5) The conveying distance is long, and the length of a single machine can reach several kilometers; the conveying capacity is large and the conveying volume is

Q=400-9600m3/h

(6) The elongation of the conveyor belt is small, about 1/5 of that of ordinary belts. The service life is 2-3 times longer than ordinary belts.

(7) It can be used in open-air situations, but if possible, use belt conveyor corridors or add protection.

cover.

(8) It can be transported horizontally, upwardly inclined and downwardly inclined.

For the explosion-proof type (underground or in the factory), generally it can only be satisfied with horizontal transportation or transportation with a small inclination angle. The so-called smaller inclination angle refers to the inclination angle that does not generate power generation during the downward movement and does not reverse after the upward movement stops.

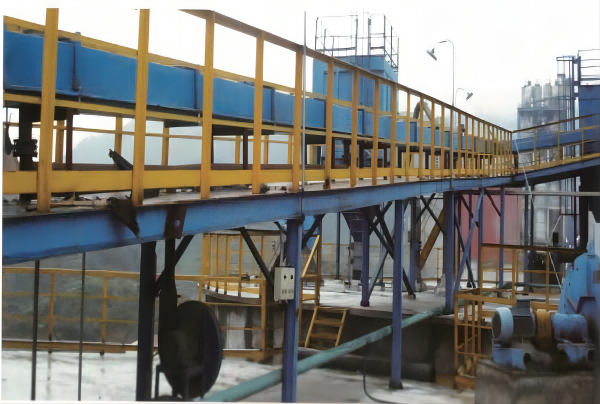

The buried scraper conveyor is a continuous conveying equipment that uses a moving scraper chain to transport bulk materials such as powder, small granules, and small blocks in a closed rectangular cross-section shell. Because the scraper chain is completely buried in the material when conveying materials, it is called "buried scraper conveyor".

The buried scraper conveyor has a simple structure, light weight, small size, good sealing, and is easy to install and maintain. It can not only transport horizontally, but also tilt and vertically; it can not only transport single machine, but also can be arranged in combination and transported in series; it can feed materials at multiple points and unload materials at multiple points, and the process layout is more flexible. Due to the closed shell, working conditions can be significantly improved when conveying materials and environmental pollution can be prevented. The model produced by our company is a general-purpose buried scraper conveyor, which can be widely used in chemical industry, metallurgy, light industry, grain, medicine, electric power and other departments.

DTII\DTII(A) type fixed belt conveyor is a universal series of products designed uniformly in China. Its main parameters and performance are in line with ISO international standards. It is widely used in metallurgy, mining, coal, ports, electric power, building materials, Chemical, petroleum and other industries. A single machine or multiple units form a transportation system to transport materials, which can transport various bulk materials and finished items with a density of 500-2500kg/m³.

This series of conveyors can meet the requirements of horizontal and inclined conveying, and can also adopt a conveying form with a combination of convex arc, concave arc sections and straight sections. The material lumpiness allowed by the conveyor depends on the bandwidth, belt speed, groove angle and inclination angle. The maximum block size applicable to various bandwidths is recommended for this series according to Table 1.

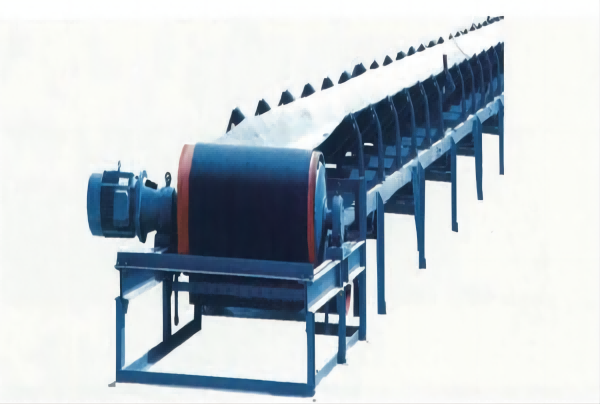

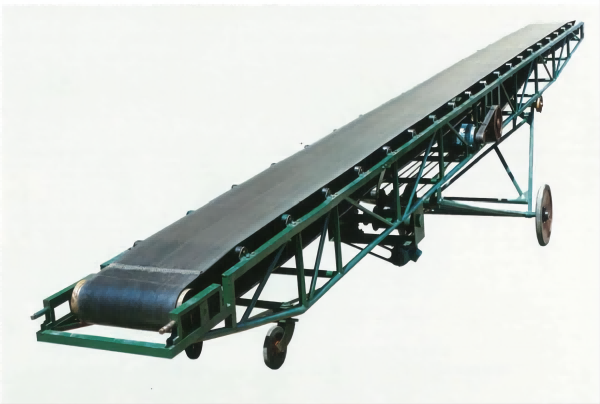

TD75 universal fixed belt conveyor (called TD75 type) is widely used in metallurgy, coal, transportation, building materials, mining, chemical industry, and ports due to its advantages of large transportation capacity, simple structure, easy maintenance, low cost, and strong versatility. and other departments, used to transport bulk materials or finished items. It can be arranged horizontally or tilted according to process requirements.

The temperature of the materials transported by the TD75 belt conveyor is below 50℃. Environment temperature +40℃-25℃. If corresponding protective measures are taken, it can also be applied to occasions with special requirements such as explosion-proof, waterproof, anti-corrosion, heat resistance, and cold resistance.

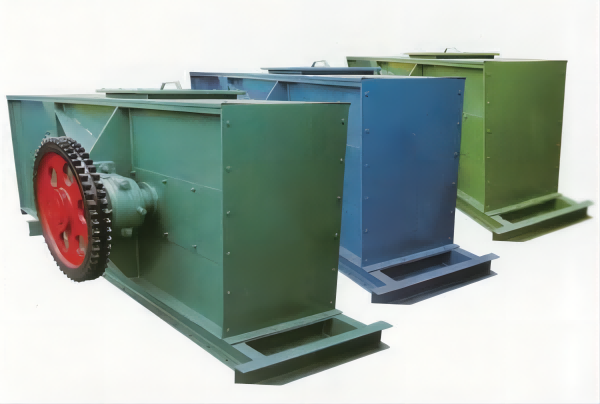

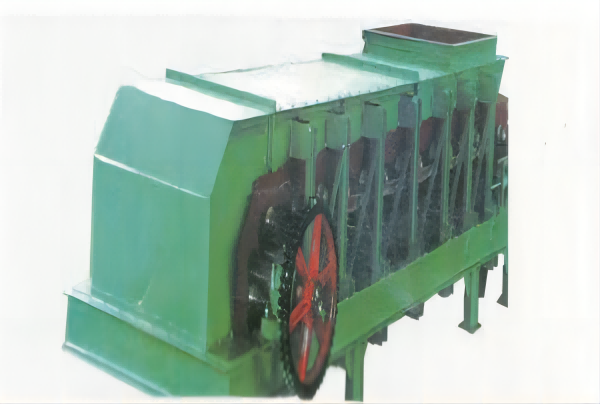

QBG chain plate conveyor is an auxiliary equipment for transportation machinery. It is suitable for conveying small pieces of materials with small specific gravity over short distances in a certain amount. Its feeding particle size is below 350mm. The material temperature should not be higher than 350℃.

This machine is widely used in mining, chemical industry, electric power, building materials, metallurgy, petroleum, light industry and other industrial sectors to transport ore and other materials from storage bins to transportation machinery or other equipment. The machine can be installed horizontally or tilted, and its maximum inclination angle shall not exceed 25°.

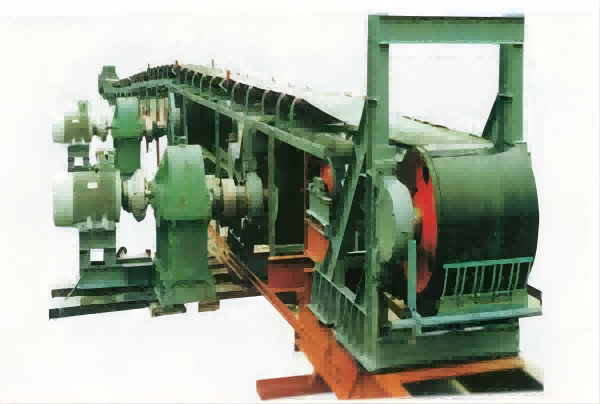

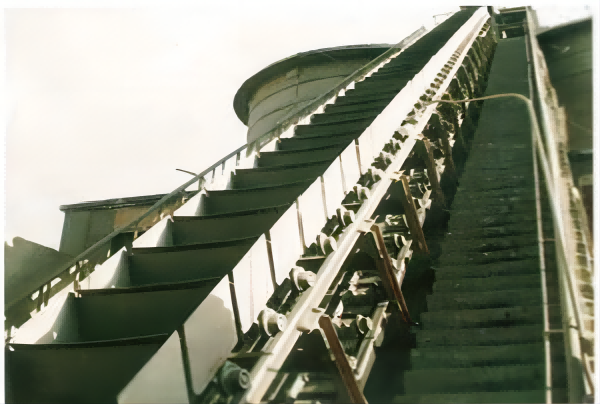

The DS type continuous chain bucket conveyor is a self-improved design based on the absorption and digestion of advanced technology from West Germany. It is suitable for horizontal or inclined (inclination angle ≤ 60°) transportation of various powdery and block bulk materials, such as cement. Clinker, iron slag, ore sand, limestone, coke, etc. The heat resistance and reliability are better than those of plate conveyors, belt conveyors and vibrating conveyors. The longest single conveyor can reach about 150m, and it saves more than 50% of energy than plate conveyors. Widely used in building materials, metallurgy, coal, chemical industry, electric power and other industrial sectors.

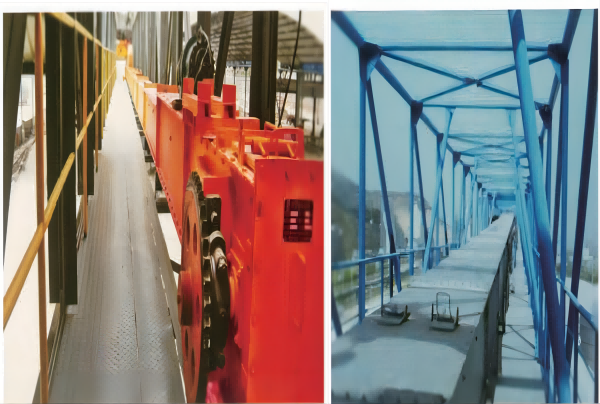

The SDBF continuous chain bucket conveyor can be arranged horizontally or inclined (≤ 60°) and is designed in accordance with the international standard ISO2140-1975. The advantage of this machine is that it is suitable for conveying high-temperature materials (material temperature ≤ 600°C) and long-distance conveying bulk density ≤ 2t/m3. Mainly used in the cement industry to transport clinker. In the chemical, aluminum-magnesium, metallurgy, electric power and other industries, it is also widely used to transport high-temperature and grinding materials.
